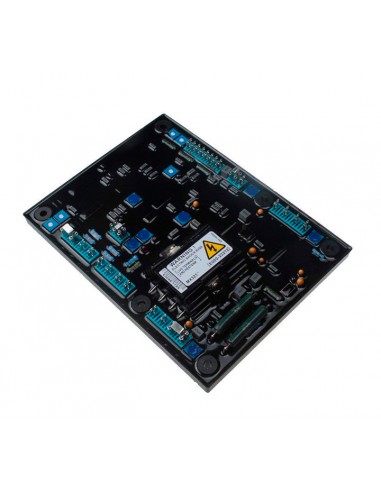

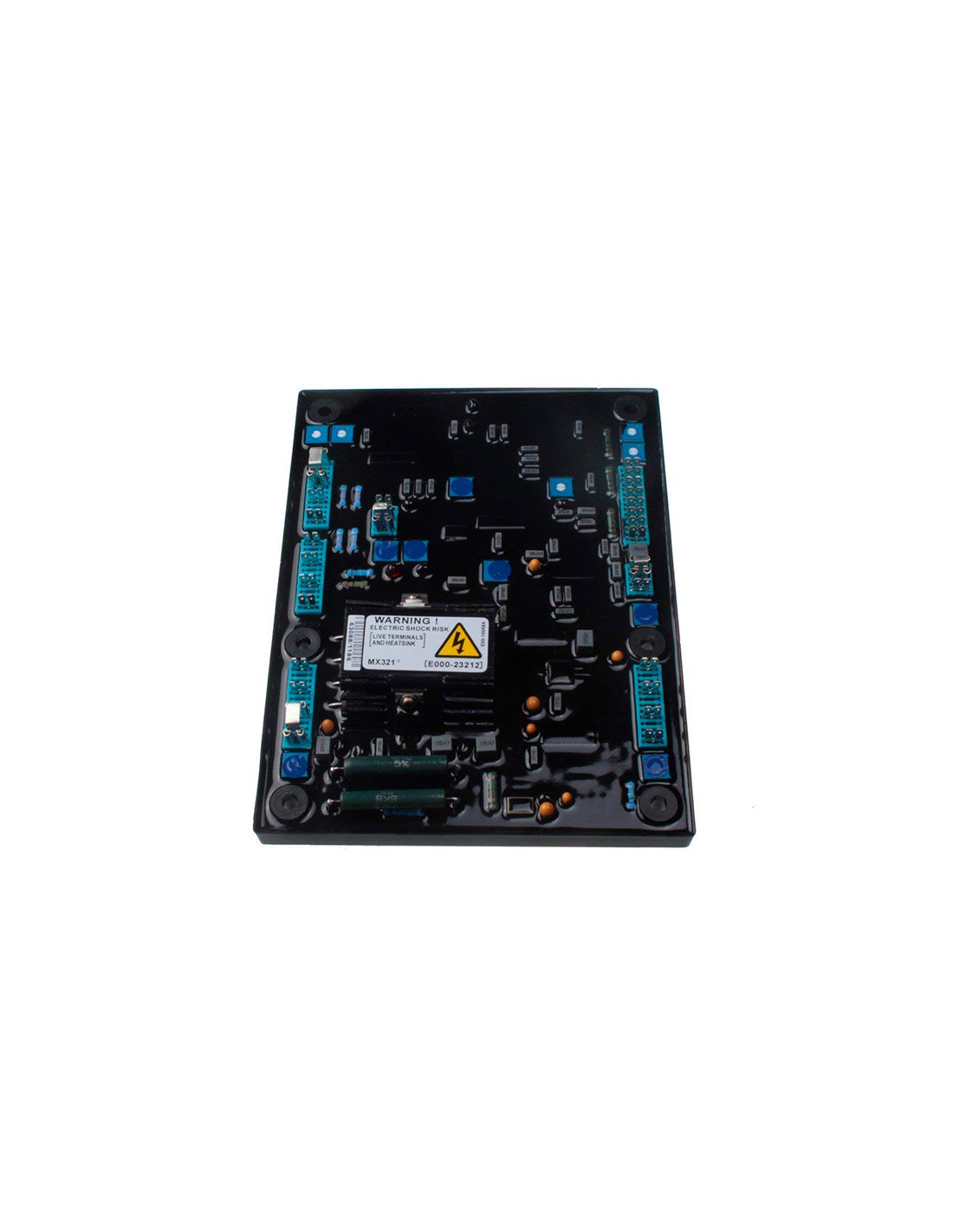

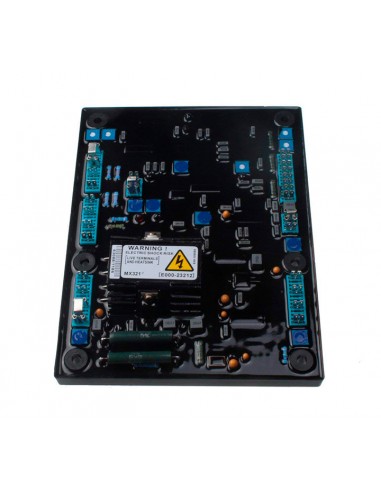

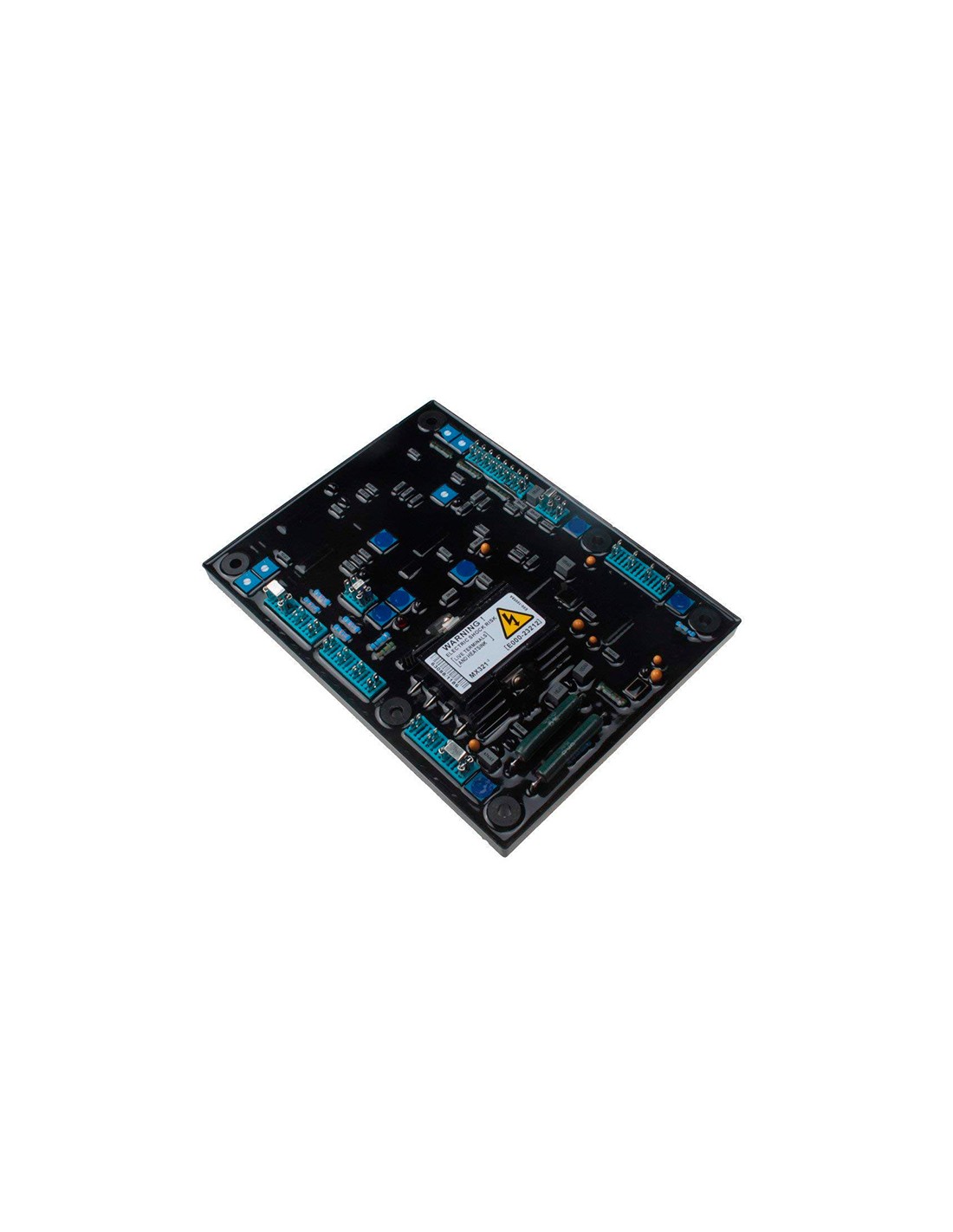

MX321 is a three phase sensed Automatic Voltage Regulator and forms part of the excitation system for PMG excited brush-less generator.

699ASZMX321
Stock Available
€385.99
Tax included

Information Request

Information Request

AVR MX321

AVR MX321


MX321 is a three phase sensed Automatic Voltage Regulator and forms part of the excitation system for PMG excited brush-less generator.

Please fill up below informations. System will send price for requested product immediately to email address provided.

* Required fields

Cancel or

Description

  • The AVR includes an over-voltage protection feature with internal shutdown of the AVR output device, plus the ability to trip an optional excitation circuit breaker if required.

  • Adjustable Soft start circuit is included to provide a smooth controlled build up of generator output voltage.

  • The AVR has the option for droop CT connection, to allow parallel running with other similarly equipped generators.

  • An analogue input is provided allowing connection to a New Age Power Factor controller or other external device with compatible output.

Product Details

Manufacturer
TGE
Model
Equivalent STAMFORD MX321
TGE-MX321
Regulation
+/- 0.5% RMS with 4% engine governing
External Voltage Adjustment
+/-10% with 5 k ohm 1 watt trimmer
SENSING INPUT
Frequency 50-60 Hz nominal
Voltage 190-264V ac max - 2 or 3 phase
POWER INPUT (PMG)
Current 3A/phase
Frequency 100-120 Hz nominal
Voltage 170-220V ac max 3 phase 3 wire
OUTPUT
Current continuous 3.7 A
Intermittent 6A for 10 secs.
Resistance 15 ohms minimum
Voltage max 120V dc
THERMAL DRIFT
0.02% per deg. C change in AVR ambient
SOFT START RAMP TIME
0.4 - 4 seconds
TYPICAL SYSTEM RESPONSE
AVR response 10 ms
Filed current to 90% 80 ms
Machine Volts to 97% 300 ms
UNDER FREQUENCY PROTECTION
Max. Dwell 20% volts/S recovery
Set point 95% Hz
Slope 100-300% down to 30 Hz
UNIT POWER DISSIPATION
18 watts maximum
ANALOGUE INPUT
Input resistance 1k ohm
Maximum input +/- 5 Vdc
Sensitivity 1v for 5% Generator Volts (adjustable)
OVER EXCITATION PROTECTION
Set point 75 V dc
Time delay 8-15 seconds
ENVIRONMENTAL
100Hz – 2kHz 3.3g
Operating temperature -40 to +70 °C
Relative Humidity 0-700C 95%
Storage temperature -55 to +80 °C
Vibration 20-100 Hz 50mm/sec
CURRENT LIMIT INPUT
10 ohms burden
Sensitivity range 0.5 – 1A
QUADRATURE DROOP INPUT
10 ohms burden
Max. input 0.33 A
Max. sensitivity 0.22 A for 5% droop 0PF
OVER VOLTAGE DETECTOR INPUT
CB trip coil resistance 20-60 ohms
CB trip coil volts 10-30 vdc
Set point 300v. Time delay 1 Sec
