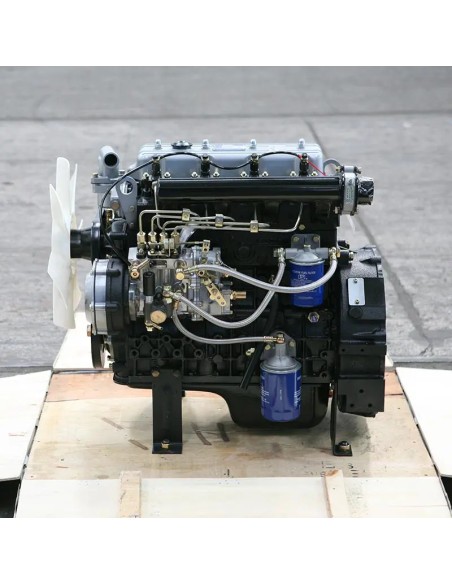

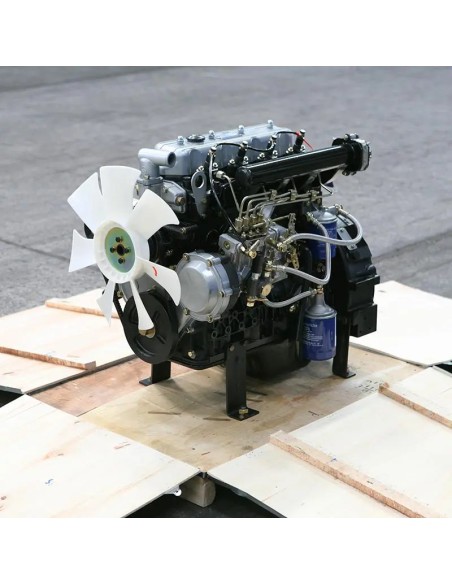

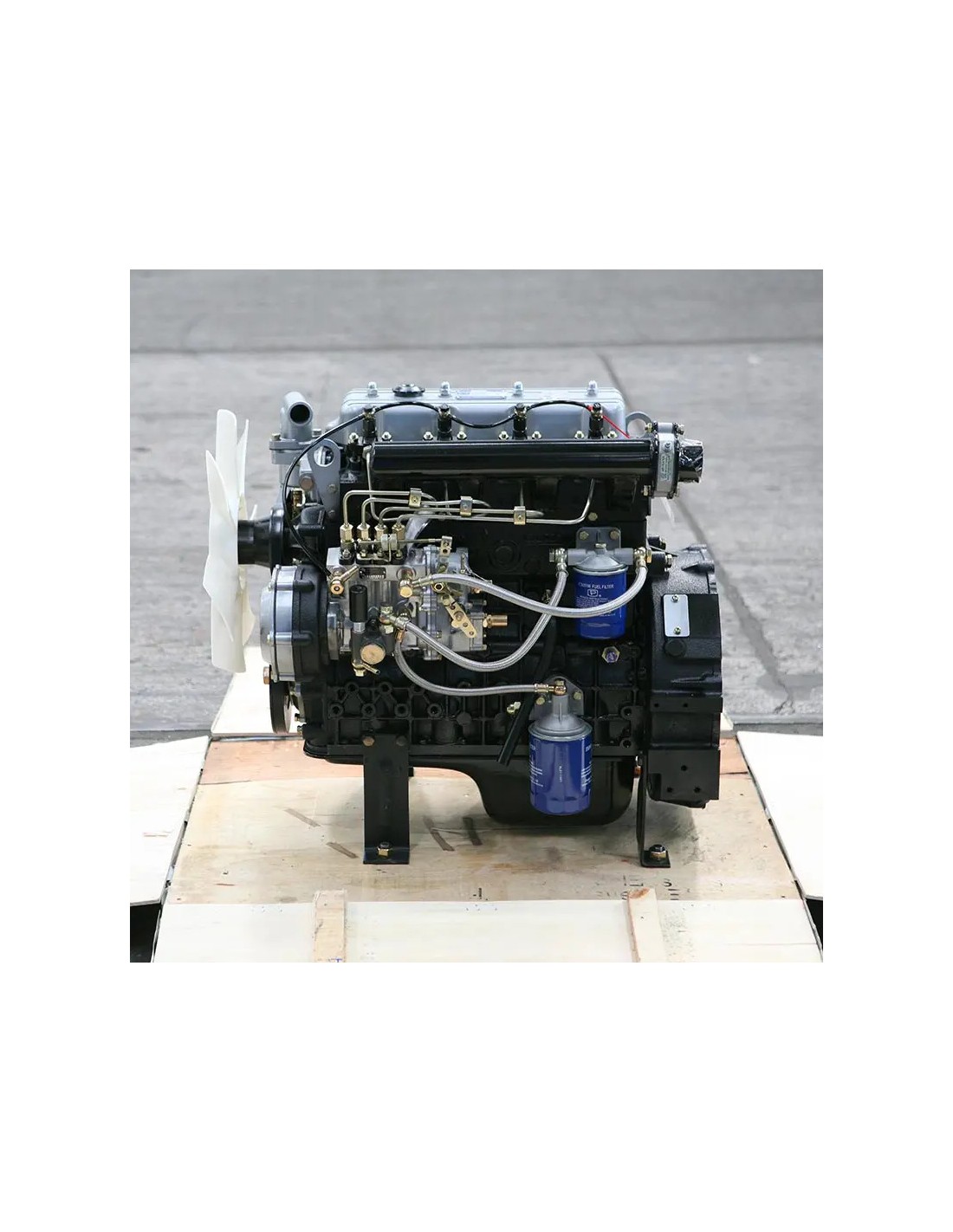

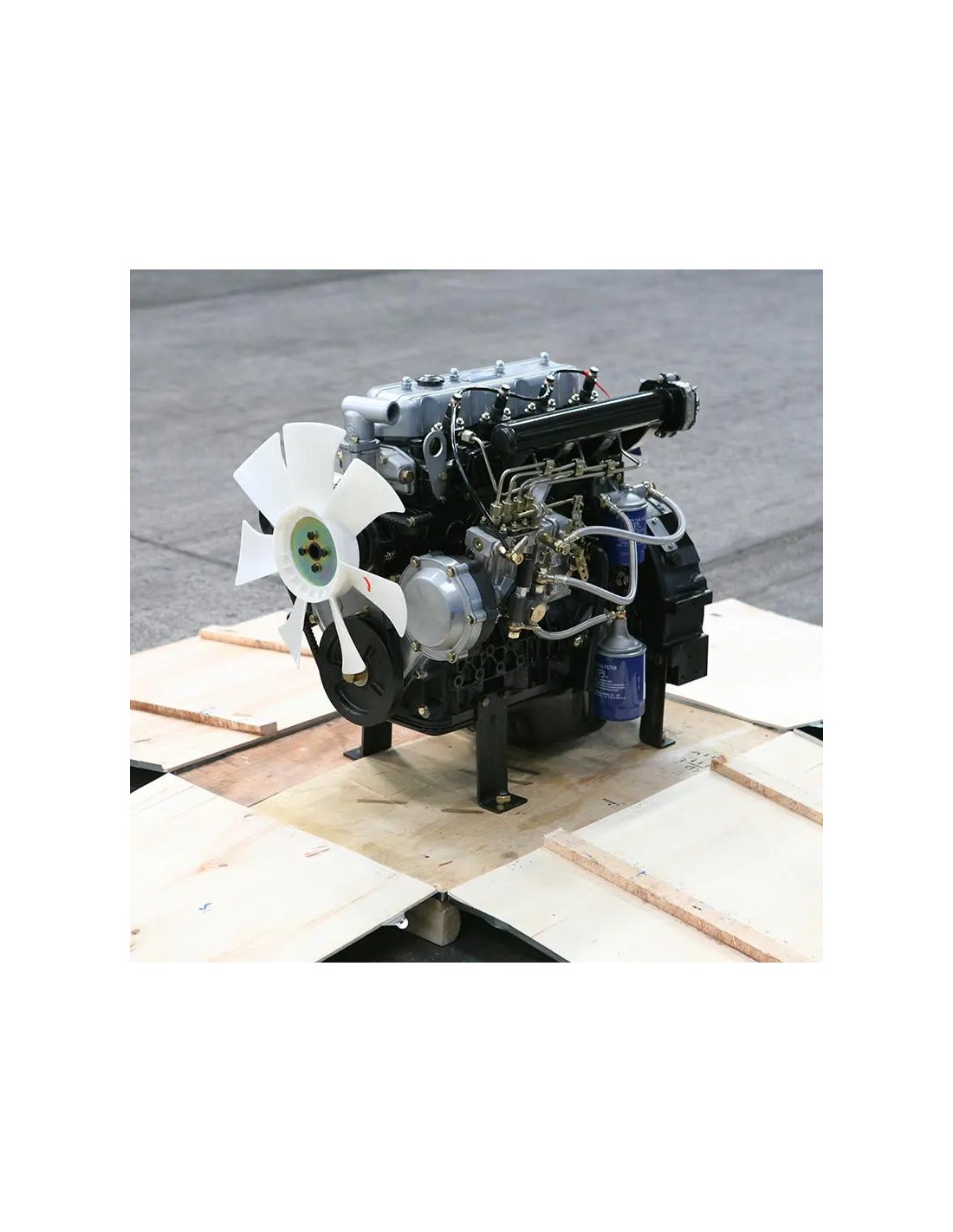

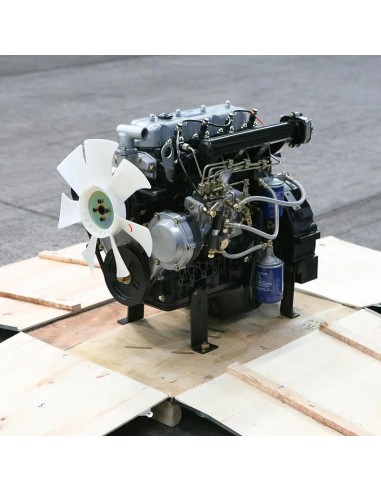

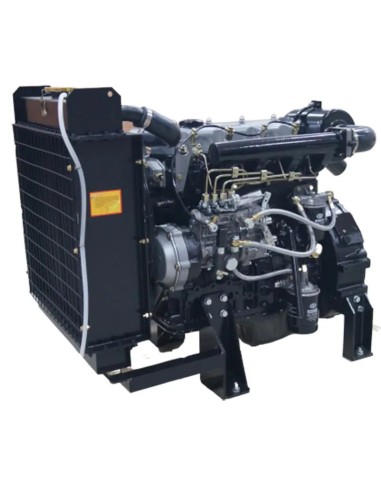

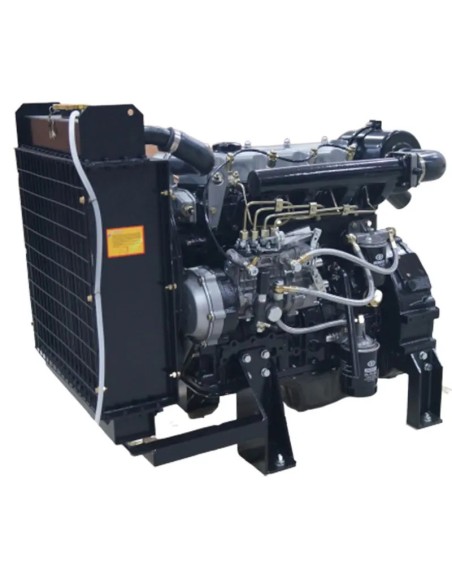

Diesel Engine YSD490D 50/60 Hz
Diesel Engine YSD490D 50/60 Hz
Diesel Engine YSD490D 50/60 Hz
Diesel Engine YSD490D 50/60 Hz
Diesel Engine YSD490D 50/60 Hz
Diesel Engine YSD490D 50/60 Hz

Diesel Engine YSD490D 50/60 Hz

  • YTO engines are robust diesel engines specially designed to withstand tough and demanding jobs, such as those required in tractors and generator sets. These motors are highly recognized in the industry due to their manufacturer's extensive experience and dedication to innovation and efficiency.

  • Two speed controller options are offered for the motors: a mechanical one, suitable for various applications, and an electronic one specifically designed to ensure that the generator set maintains a stable frequency against changes in load.
682YD490DE
Request information on delivery time and availability.
€3,501.74
Tax included

Information Request

Information Request

Diesel Engine YSD490D 50/60 Hz

Diesel Engine YSD490D 50/60 Hz


YTO engines are robust diesel engines specially designed to withstand tough and demanding jobs, such as those required in tractors and generator sets. These motors are highly recognized in the industry due to their manufacturer's extensive experience and dedication to innovation and efficiency. Two speed controller options are offered for the motors: a mechanical one, suitable for various applications, and an electronic one specifically designed to ensure that the generator set maintains a stable frequency against changes in load.

Please fill up below informations. System will send price for requested product immediately to email address provided.

* Required fields

Cancel or

Description

Reliable

  • All motors in the series have passed through 2000 hours of durability test.

Comfortable

  • Small vibration and low noise level.

Economy

  • Low fuel consumption and oil consumption.

Environmental protection

  • All meet the emission requirements of China diesel engines, some products meet the emission requirements of the United States, Europe, India and other countries.

Certification

  • IS09001-2000,TS-16949,EPA,E-MARK,CPCB,CE Certificados.

Product Details

Model
YSD490D
Number of cylinders
4
Motor Type
Four Stroke
Vertical
Water Cooling
Combustion chamber type
Direct Injector
Diameter (mm)
90
Stoke (mm)
100
Compression ratio
18
Total displacement(L)
2.54
Firing order
1-3-4-2
Rated power (KW)/Speed (RPM)
21/1500 25/1800
Minimum specific fuel consumption at full load (g/kW.h)
≤248
Intake Type
Natural Aspiration
Cooling method
Forced water cooling
Starting method
Electric
Flywheel size
SAE7.5″
Bell housing size
SAE4#
Net mass without radiator
280
Overall dimensions (L*W*H) (mm) without radiator
716*530*670
