- Fabricante
- TGE
- Modelo

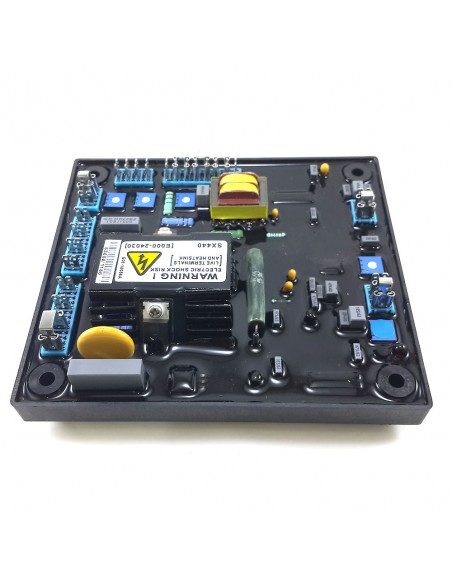

- Equivalent STAMFORD SX440
TGE-SX440 - Regulación
- +/- 1%
- Ajuste de Voltaje Externo
- +/-10% with 1 k ohm 1 watt trimmer
- DETECCIÓN DE ENTRADA
- 1 phase 2 wire
Frequency 50-60 Hz nominal
Voltage 190-264V ac max - OUTPUT
- Current continuous 4A dc
Intermittent 6A for 10 secs
Resistance 15 ohms minimum
Voltage max 90V dc at 207V ac input - DERIVACIÓN TÉRMICA
- 0.04% per °C change in AVR ambient
- RESPUESTA TÍPICA DEL SISTEMA
- AVR response 20ms
Filed current to 90% 80 ms
Machine Volts to 97% 300ms - PROTECCIÓN DE BAJO FRECUENCIA
- Set point 95% Hz
Slope 170% down to 30 Hz - UNIT POWER DISSIPATION
- 12 watts maximum
- ANALOGUE INPUT
- Input resistance 1k ohm
Maximum input +/- 5V dc
Sensitivity 1V for 5% Generator Volts - ENVIRONMENTAL
- 100Hz – 2kHz 3.3g
Operating temperature -40 to +70 °C
Relative Humidity 0-70 °C 95%
Storage temperature -55 to +80 °C
Vibration 20-100 Hz 50mm/sec - BUILD UP VOLTAGE
- 4 Volts @ AVR terminals
- QUADRATURE DROOP INPUT
- 10 ohms burden
Max. input 0.33A
Max. sensitivity 0.07 A for 5% droop 0PF
